Calling All DIY Enthusiasts! Get to Know How to Install an Exhaust Fan Like a Pro
Are you tired of dealing with odors, excessive heat, and moisture in your bathroom? Installing an exhaust fan can be the solution to these issues. In this blog post, we’ll walk you through a step-by-step guide on installing an exhaust fan in your home.
Let’s dive in; you’ll be one step closer to a fresher and more comfortable bathroom experience by the end!
Necessary Tools and Materials for Installation
You’ll need a selection of tools and materials for successfully installing a bathroom exhaust fan. The list includes:
- A Bathroom Exhaust Fan could be wall-mounted or ceiling-mounted, depending on your preference and home layout.
- Flexible Ducting is required to vent the fan to an outside location not more than 6 feet from the exit point.
- A 120V Power Source is needed to power the fan.
- A Stud Finder for locating the joists where you will mount your fan
- A Cordless Drill and a Reciprocating Saw for drilling locator holes and cutting exterior vent locations, respectively.
- Drywall Jab Saw or similar tool for cutting interior openings in drywall or plaster.
- Safety Glasses, Dust mask, or Respirator to protect yourself during installation.
- Suspension Brackets securely attach your bathroom fan housing to the joists.
- Electrical Wire for making connections between your house wires and the fan wires.
- Grounding Equipment/Tools are required to ensure the safe use of electricity in your bathroom.
- Aluminum Foil Tape is used for securing ducts.
- Silicone Caulk for sealing gaps around fans and vents, as well as attaching the Roof cap
- Additional items such as Bathroom Fan Grille, Vent Point, and Exterior Vent Location may also be necessary depending on specific installation needs.
Steps to Installing an Exhaust Fan
To install an exhaust fan, determine the fan size and mounting location, plan the exhaust route and electrical options, remove the old fan, mount the new fan with or without attic access, and install an attic duct if needed.
Determining the Fan Size and Mounting Location
Determining the correct fan size for your bathroom is an essential first step in installing an exhaust fan. The fan’s size largely depends on your bathroom’s layout and square footage.
A range exists between small and large bath fans, each with specific coverage capabilities. For instance, a smaller bathroom may only require a small or medium-sized fan. In contrast, larger bathrooms or those with higher humidity levels might necessitate a stronger and bigger exhaust fan.
The mounting location equally carries significant weight during installation. Ideally, It should be near the shower or tub since these areas typically generate the most moisture-laden air.
However, if your bathroom has separate rooms for the toilet and shower, consider installing more than one exhaust fan. According to International Residential Code ventilation regulations, installing an exhaust fan over a tub or shower requires it to be rated for damp locations unless protected by Ground-Fault Circuit-Interrupter (GFCI). Thus defining both – appropriate Fan Size & Mounting Location is crucial before initiating any Bathroom Exhaust Fan Installation project.
Planning the Exhaust Route and Electrical Options
Before installing a bathroom exhaust fan, time must be spent planning both the exhaust route and electrical options. In residential settings, bathroom fans typically utilize AC 120V electrical lines.
As such, you’ll need to identify and run live electric cables to your selected location for the fan. Considering possible power sources ahead of time will help eliminate complications further down the line.
When plotting out your venting path, remember that building code regulations often mandate running a duct from the fan straight to an outside wall or roof within six feet of where it exits the unit for efficient moisture-laden air expulsion. Hence, zeroing in on this direct route ensures optimal performance while adhering to International Residential Code requirements about ventilation systems.
Removing the Old Exhaust Fan
Before installing a new exhaust fan, it is crucial to remove the old one properly. Start by disconnecting the old fan and turning off the power at the circuit breaker. Remove any screws or clips holding the fan housing in place and detach any wiring connections.
Take care when removing the housing to avoid damaging surrounding ceiling materials. Once removed, check for any accumulated dust or debris that may have accumulated over time. By thoroughly removing the old exhaust fan, you can ensure a clean and effective installation of your new unit.
Mounting the New Fan with or without Attic Access
To mount the new exhaust fan, determine whether you have attic access. If you do have access, locate the desired mounting location in the bathroom ceiling and mark it. Cut a hole using a reciprocating saw or drywall jab saw following the manufacturer’s instructions for size and shape. Securely attach suspension brackets to the joists above the opening.
If you don’t have attic access, use a stud finder to locate two adjacent joists in your bathroom ceiling where you want to mount the fan. Mark their positions and cut an opening between them using a reciprocating or drywall jab saw. Attach suspension brackets securely to these joists.
Once the suspension brackets are in place, attach aluminum foil tape around all edges of the bathroom fan housing where it contacts with the ceiling. This helps create a tight seal and prevent air leakage.
Installing an Attic Duct with a Roof Vent, If Needed
Proper ventilation is crucial in a bathroom to prevent moisture build-up and the growth of mold and mildew. If your bathroom has no existing vent, install an attic duct with a roof vent.
This ensures that the moist air from your bathroom is effectively expelled outside.
To install the attic duct with a roof vent, you must find a suitable location where the duct can run vertically through your roof. It’s essential to consider factors such as accessibility and proximity to the bathroom exhaust fan when determining this location. Once you’ve determined the ideal spot, you’ll need to cut a hole in your roof for the vent. This requires removing shingles carefully and installing roofing nails or adhesive around the edges of the vent flanges for proper sealing.
How to Attach the Fan to the Joists
To attach the fan to the joists, follow these steps:
– Measure and mark the location of the joists on both sides of where you plan to mount the fan.
– Use a stud finder to locate the edges of each joist.
– Position suspension brackets over the marks for each joist and attach them securely using screws or nails.
– Place aluminum foil tape around any holes in ductwork connections or seams to ensure a tight seal.
– Position the fan housing onto the suspension brackets, ensuring it is level and centered between the marked joists.
– Securely screw or nail through pre-drilled holes in the housing into each bracket, ensuring it is firmly attached.
Stop writing.
Cutting and Securing the Duct Hole
Cutting and securing the duct hole is essential to installing an exhaust fan. Here’s how to do it:
– Start by measuring the diameter of the exhaust fan’s duct opening.
– Use a pencil or marker to mark the center point for your duct hole on the ceiling or wall where you plan to install the fan.
– Using a drill with a tiny pilot bit, create a starter hole at the center point marked.
– Next, use a reciprocating saw with a bi-metal blade to cut along the circumference of your marked duct hole size.
– Be cautious while cutting and ensure not to damage any electrical wires or plumbing pipes hidden behind the ceiling or walls. Use a stud finder before cutting to locate any potential obstacles if needed.
– Once you have completed cutting out the duct hole, remove any loose drywall pieces from around it and clean up any debris left behind.
That’s it! You have successfully cut and secured your duct hole for installing an exhaust fan. Remember to follow safety precautions, such as wearing safety glasses and gloves during this process.
Making the Wire Connections
You will need to make the necessary wire connections to install your exhaust fan. Here are the steps to do so:
– Turn off the power: Before starting any electrical work, turn off the power at the circuit breaker box to prevent accidents.
– Prepare wires: Strip about 3/4 inch of insulation from both ends of a three-wire cable. This cable will run from the fan unit to the switch location.
– Connect wires: At the fan motor, connect the black Wire from the three-wire cable to one of the hot leads on the motor. Then, connect all white wires and secure them with a wire connector.
Finally, connect all green or bare copper ground wires and secure them with a wire connector.
– Route cables and wires: Run both ends of this three-wire cable and two separate lengths of Romex or other approved electrical wiring through drilled holes in studs or joists as needed.
– Secure cables: Use staple guns or plastic staples designed for electrical cables to secure these cables safely along their entire length.
That’s it! You have successfully made all necessary wire connections for your exhaust fan installation. Always follow safety guidelines when working with electricity, and consult a professional if you need clarification on any step in this process.
Finishing Touches
Attach the fan grille securely to the housing using the provided screws. Caulk any gaps between the fan housing and ceiling to ensure a tight seal. Finally, install the vent cap on the exterior of your home to prevent rain or debris from entering the duct.

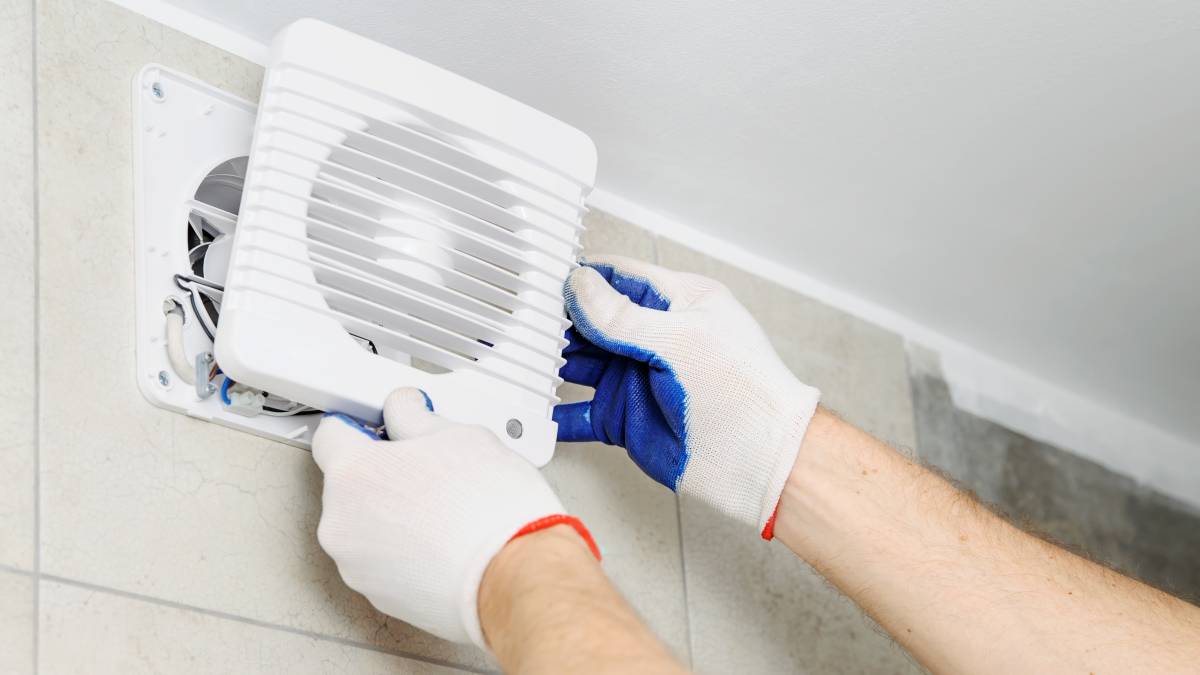

Attaching the Fan Grille
You’ll need to attach the fan grille to complete an exhaust fan installation. This is a simple step that involves connecting the grille to the housing. The fan grille helps direct airflow and prevent debris from entering the fan.
It’s essential to make sure it is securely attached so that it doesn’t come loose over time. Once the fan grille is in place, your exhaust fan will be fully installed and ready to effectively remove moisture-laden air and odors and help maintain a well-ventilated bathroom space.
Caulking the Ceiling Gap
Caulking the ceiling gap is crucial in adequately installing an exhaust fan. By sealing the perimeter of the fan housing with caulk, you can minimize sound transmission and prevent any air leakage.
This helps ensure your bathroom remains quiet when the fan is operating and improves its effectiveness at removing moisture-laden air and unpleasant odors.
Applying silicone caulk to the exterior vent location is crucial to creating a watertight seal. This will prevent any potential water damage or leaks during rainy weather.
Installing the Vent Cap
To complete the installation of an exhaust fan, it is essential to install a vent cap. The vent cap is a protective cover for the duct and prevents unwanted debris or critters from entering.
It also helps to keep rainwater out while allowing proper airflow. When installing the vent cap, check the screen and damper for proper functioning before securing it.
This final step ensures that your exhaust fan system is fully functional and ready to effectively remove moisture, heat, and odors from your bathroom space.
Safety Precautions During Installation
- Wear safety glasses to protect your eyes from debris and dust.
- Use a dust mask or respirator to avoid inhaling any harmful particles.
- Keep the power off in the bathroom during installation to prevent electrical accidents.
- If you need to cut into drywall or plaster, use a drywall saw or drill a hole carefully to avoid causing damage.
- Be cautious when working in the attic, as there may be insulation that can cause skin irritation or allergic reactions.
- Use a stud sensor to locate any joists before cutting into the ceiling.
- Ensure proper grounding of electrical wires and connections for safety.
- Securely attach suspension brackets to support the weight of the fan housing.
Conclusion
In conclusion, installing an exhaust fan in your bathroom is a worthwhile project that can help prevent moisture damage and improve air quality. With the right tools and materials and careful planning and execution, you can successfully install an exhaust fan to protect your bathroom surfaces and keep the air fresh.
Remember to follow safety precautions throughout the installation process for a successful outcome.
